Metallized Film
Key applications:
♦ New Energy Vehicles
♦ Wind Power
♦ Photovoltaics
♦ Energy Storage
♦ Flexible DC Transmission
♦ High-Frequency Pulses
♦ Rail Transportation
Product Offerings:
1. Pure Aluminum Film (including polyester double-sided aluminum film)
2. Heavy-edged zinc metallized aluminum film
3. Zinc-aluminum metallized film
4. Safety Films
Special Requirements:
Custom products available for:
♦ High temperature and high humidity environments
♦ Low noise requirements
● Main Products And Application Areas
| Product | Square resistance （Unit: Ω/opening） |
Thickness（Unit: μm） | Application areas | Advantage | Structure |
| (All products can be made in thickness of 1.9 to 11.8 microns, and the followings are just the commonly uesd range.) | |||||

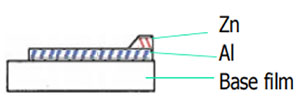

| Heavy-edged zinc metallized aluminum film | 3/20 3/30 3/50 3/200 |
2.9~5.8 | Used in capacitors for automotive, photovoltaic, wind power, pulse, and power applications. | Good conductivity, excellent self-healing properties, strong resistance to atmospheric corrosion, and long storage life. |  |
| Zinc-aluminum metallized film | 3/10 3/20 3/50 |

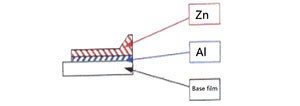

2.9~11.8 | Used in capacitors for safety standards, flexible DC transmission, power, power electronics, and household appliances. | Low capacitance attenuation over long-term use; the metallized coating is easy for gold spraying. | 1. Have heavy edge |
 |
|||||
| 2. Gradient resistance and heavy edge | |||||
 |
|||||
| Al metallized film | 1.5 3.0 |

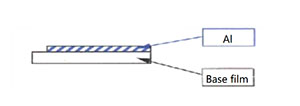

2.9~11.8 | Used in capacitors for electronics and lighting applications. | Good conductivity, excellent self-healing properties, strong resistance to atmospheric corrosion, and long storage life. | 1. One side metalized |
 |
|||||

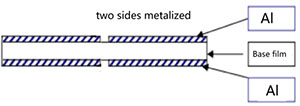

| 2. Two sides metalized | |||||
 |
|||||

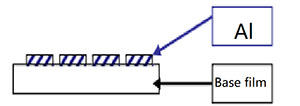

| 3. Series connection film | |||||
 |
|||||

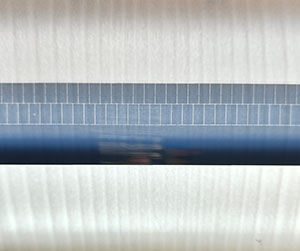

| Safety film | According to customer requirements | 2.4~4.8 | Used in capacitors for new energy vehicles, power, power electronics, refrigerators, and air conditioners. | Flame-retardant and explosion-proof, high dielectric strength, excellent safety, stable electrical performance, and cost-saving on explosion protection. |  |
Wave Edge
● Wave Cutting Dimensions and Allowable Deviations（Unit: mm）
| Wavelength | Wave Amplitude (Peak-Valley) | ||
| 2-5 | ±0.5 | 0.3 | ±0.1 |
| 8-12 | ±0.8 | 0.8 | ±0.2 |

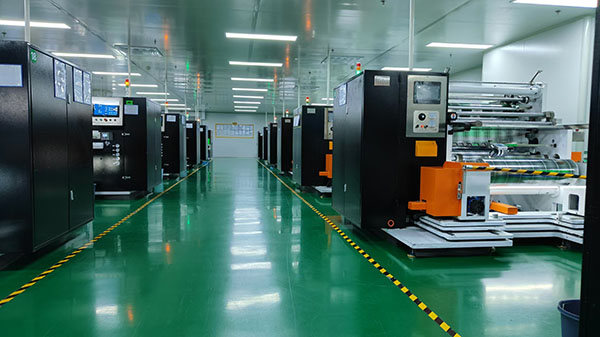

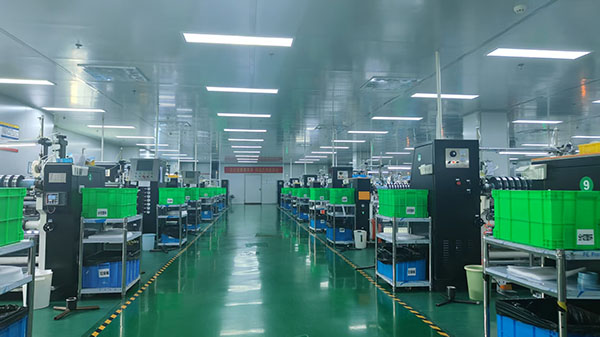

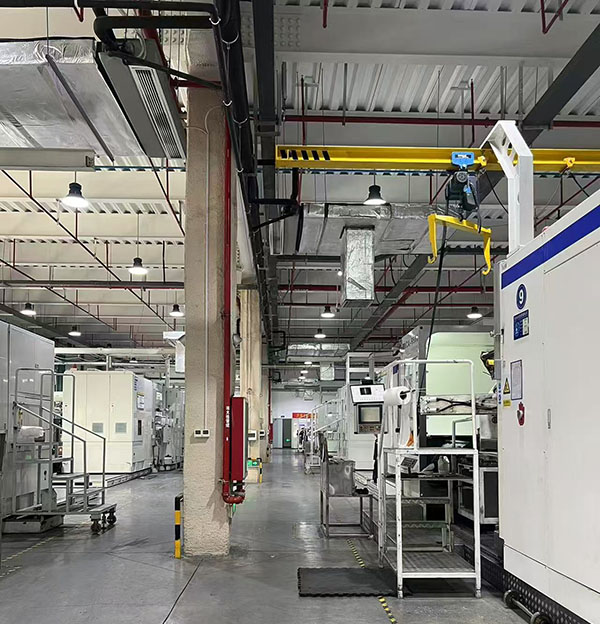

Professional Equipment
High vacuum coating machine: 13 sets
High-precision slitting machine: 39 sets
Production capacity: the annual production capacity 4200 tons
