Insulation Resin Rich Mica Tape

Mica tape, laminated by non-calcined mica paper and various reinforcing material, like PET, PI, glass fabric cloth and other, has good performance of characteristics under the normal temperature, featuring good flexibility, no conglutination between layer and layer when unreeling, no powder when wrapping. Zinc ion accelerator has been included, forming good performance of insulation after curing with epoxy anhydride type impregnating varnish. It is applicable for VPI insulation system and other system for high-voltage electric motors.

Send Email to Us

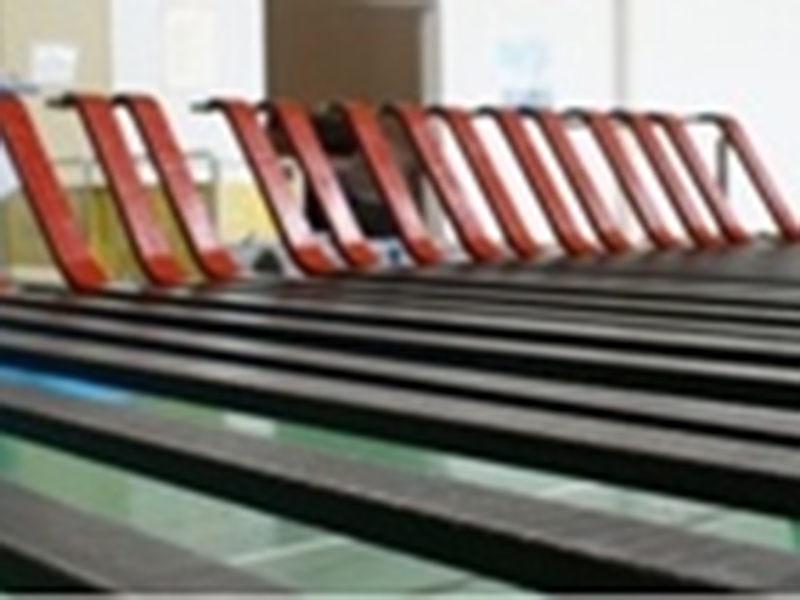

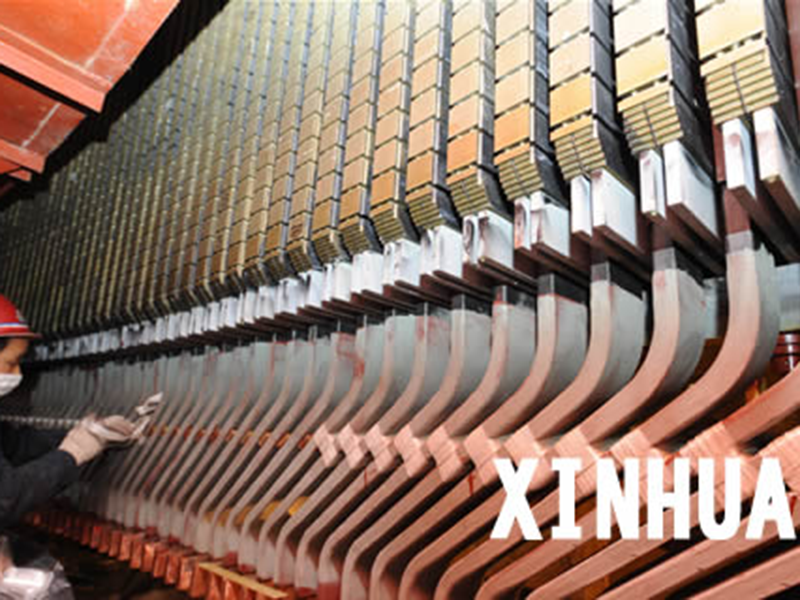

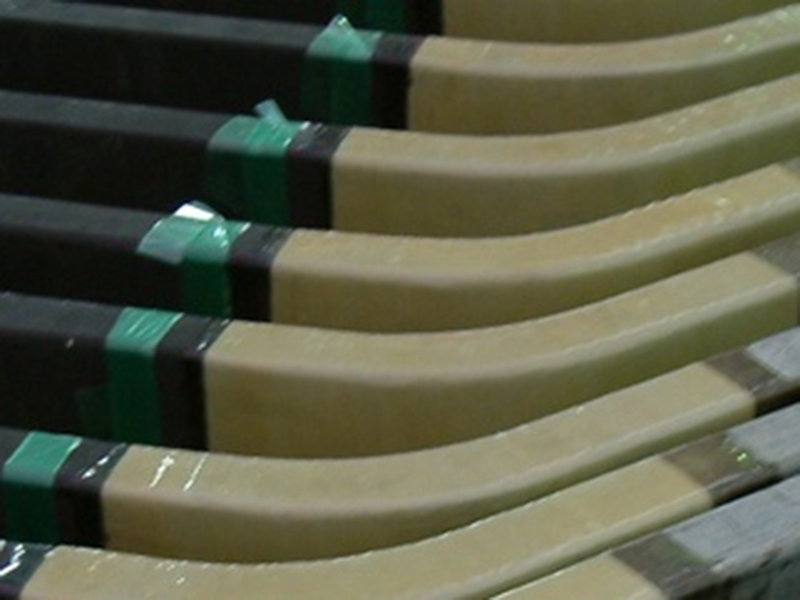

Applicable for high-voltage electric motors

● Describe

Grade	Category	Description	Thermal Class	THK(mm)	Application
5440-1D	Resin Rich	Single side reinforced resin rich mica tape	F-155℃	0.14	Insulation for HV motor coil
5440-1K		Fast curing tungma epoxy glass fabric mica tape
5440-1		Tungma epoxy glass fabric mica tape
5442-1	Vacuum Pressure Impregnation	Epoxy glass fabric mica tape	F-155℃	0.11-0.15	HV motor stator VPI insulation
5442-1P		Epoxy polyester film mica tape		0.09-0.15
5442-1PC		Zn ++ epoxy glass fabric polyester film mica tape		0.11-0.15
D5442-1		Zn ++ epoxy glass fabric mica tape		0.11-0.15
D616-1		Freon-resistant glass fabric mica tape		0.14	HV freon-resistant motor stator VPI insulation
D620-1		Epoxy polyimide film mica tape	C-200℃	0.075-0.13	Insulation for special motors and magnet wire
D620-1C		Epoxy corona resistant polyimide film mica tape	C-200℃	0.075-0.13	Specially for the application with request of frequency conversion
