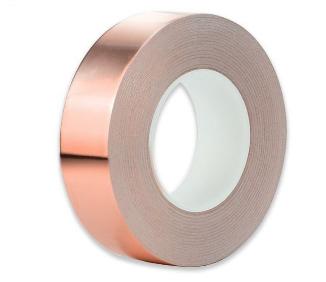

Copper Foil Tape DFTAT31A13-3515


Description

It adopts copper foil as the base material and is coated with a special pressure-sensitive adhesive, which has good high temperature resistance, electrical conductivity and heat dissipation properties.

Character

• High adhesion and good temperature resistance.

• Excellent electrical conductivity and heat dissipation properties.

• Halogen-free environmental protection.

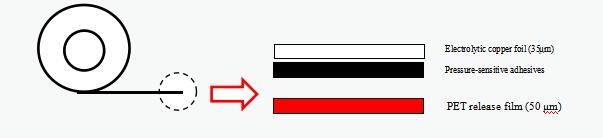

Structure

QQ截图20220415164941

Technical parameter

Items

Unit

Test Conditions

Standard scope



Test method

Tape thickness

μm

pm

   50±5

50±5

GB/T 7125

GB/T 7125

Adhesion

N/25mm

N/25mm

23℃±250±5RH  20min

23℃±2℃ 50±5%RH 20min

12

GB/T 2792

GB/T 2792

Staying power

mm

mm

23℃±250±5RH 1kg  24h

23℃±2℃ 50±5%RH 1kg 24h

2

Shielding effect

dB

dB

23℃±250±5RH 10MHz~3GHz

23℃±2℃ 50±5%RH 10MHz~3GHz

90

90



Storage conditions

• At room temperature, relative humidity <65%, avoid direct sunlight for a long time, shelf life of 6 months from the date of delivery. After expiration, it must be retested and qualified before use.

Remark

• This product may vary in quality, performance and function depending on the customer’s conditions of use. In order to use this product more correctly and safely, please conduct your own tests before using it.
